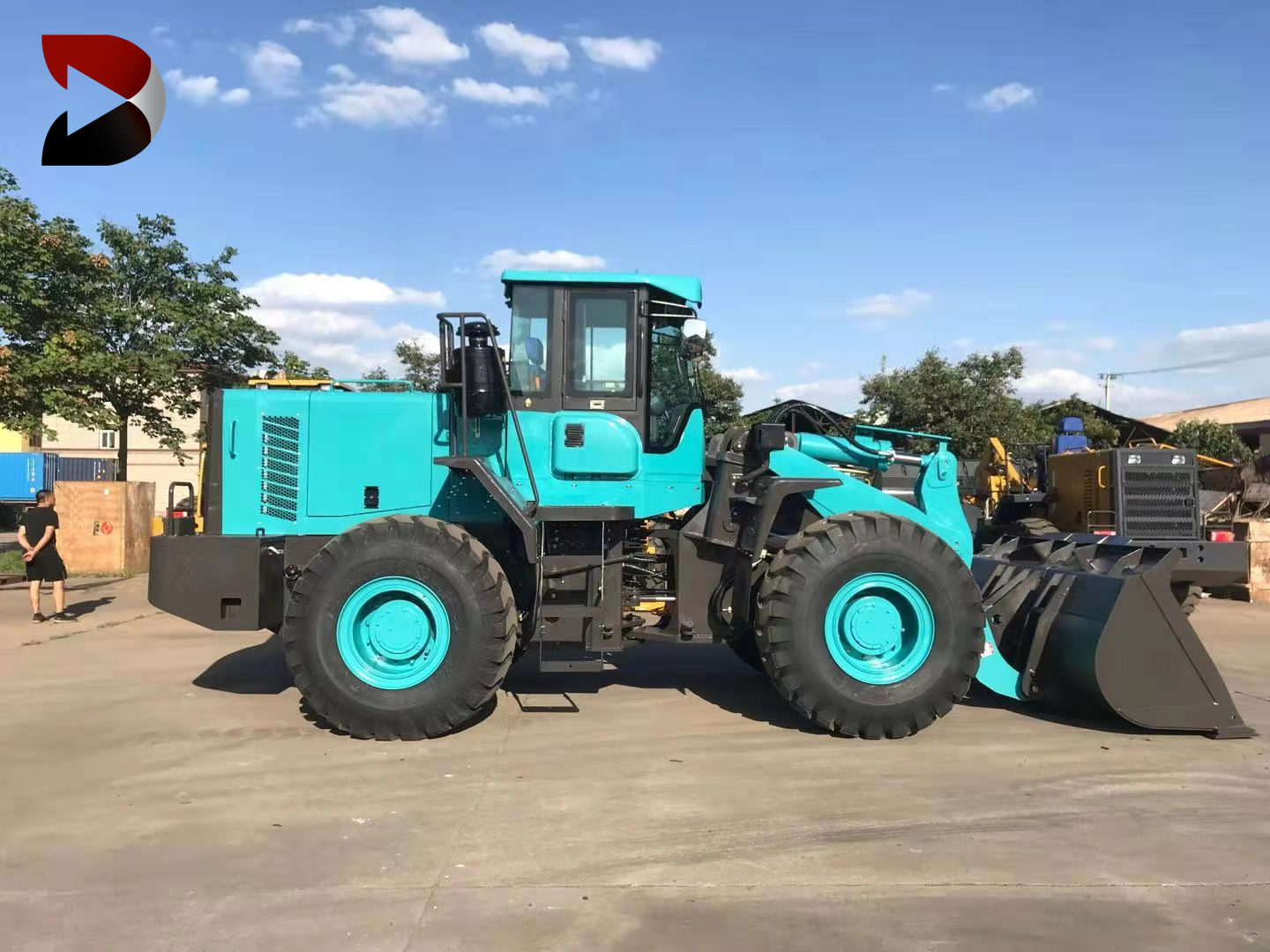

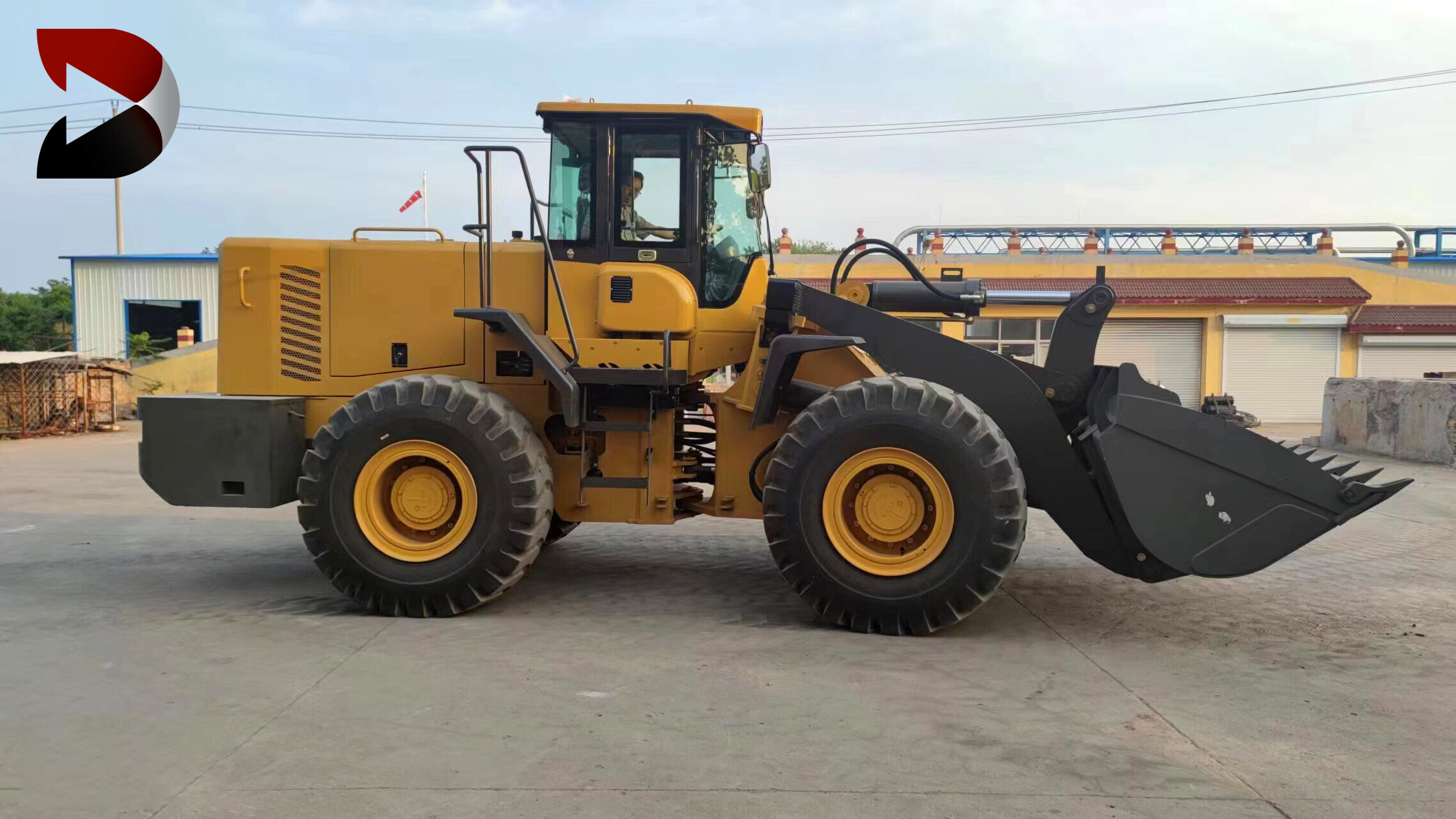

DW-50 Wheel Loader
DW5T loader has the advantages of high mobility, powerful loading capacity, simple operation, easy maintenance and low cost. They are widely used in construction, mining, logistics and ports, where they are used to load and transfer materials, carry out earthworks and form land.
+86 18206417190
+86 18206417190
admin@dwtoptruck.com
Contact Us

◉ Product Parameters

DW-5T wheel loader:

1. Hydraulic system

The hydraulic self-unloading device is adopted to realize fast unloading, convenient and efficient, and save manpower.

2. Operating system

The humanized design, the handle centralized gear is complete, the operation is simple, and the workers are easy to operate.

3. Off-road tires

The use of engineering rubber tires, suitable for swamp, mountain, grassland, snow, desert and other complex and harsh working conditions, itself has a strong adaptability.

4. Power system

Equipped with high-power engine, power output is more stable, the whole machine operation is more smooth, low fuel consumption, power, torque, easy maintenance.


TECHNICAL PARAMETERS

Vehicle size(mm)7880*3000*3350
Length of the machine (bucket placed flat on the ground)8220mm
Width of the machine (outer side of the tire)2835mm
Width of the bucket (including teeth)3066mm
Height of the machine (with cab)3450mm
Wheelbase3250mm
Track width2238mm
Minimum ground clearance440mm
Maximum dumping height3050mm
Maximum unloading distance1110mm
Operating weight17100kg
Rated bucket capacity3.0m³
Rated load capacity5T
Boom lifting time5.5s
Boom lowering time4s
Bucket dumping time1s
Speeds of each gear (Forward, Gear I)0 ~ 13Km/h
Speeds of each gear (Forward, Gear II )0 ~ 40Km/h
Speeds of each gear (Reverse, Gear I)0 ~ 15Km/h
Maximum traction force165±5KN
Maximum breakout force of the bucket≥ 170KN
Maximum gradeability30°
Minimum turning radius at the outer side of the bucket7219mm
Maximum steering angle35°


◉ Product Display

DW-50 (3).jpg

DW-50 (4).jpg
