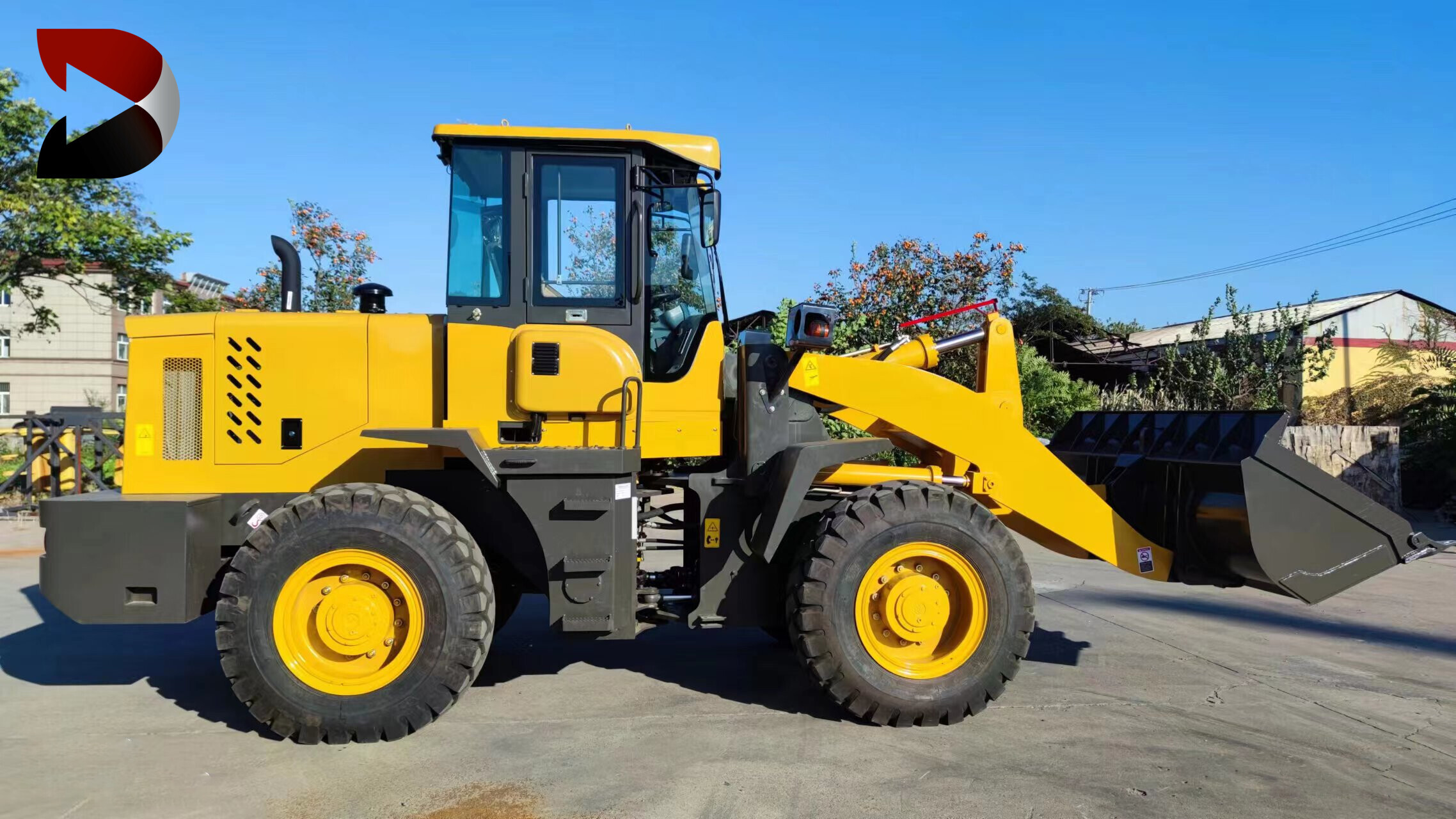

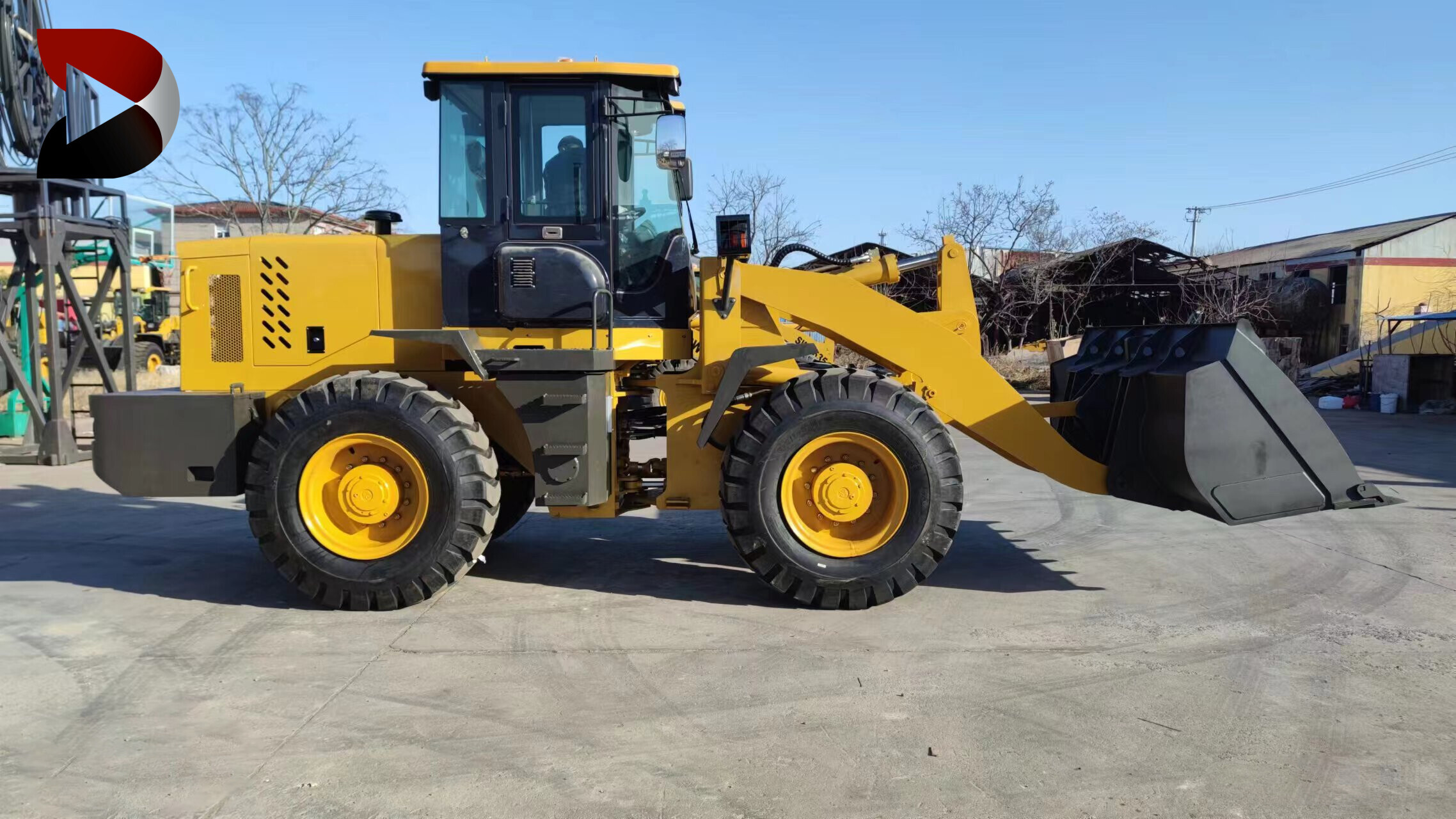

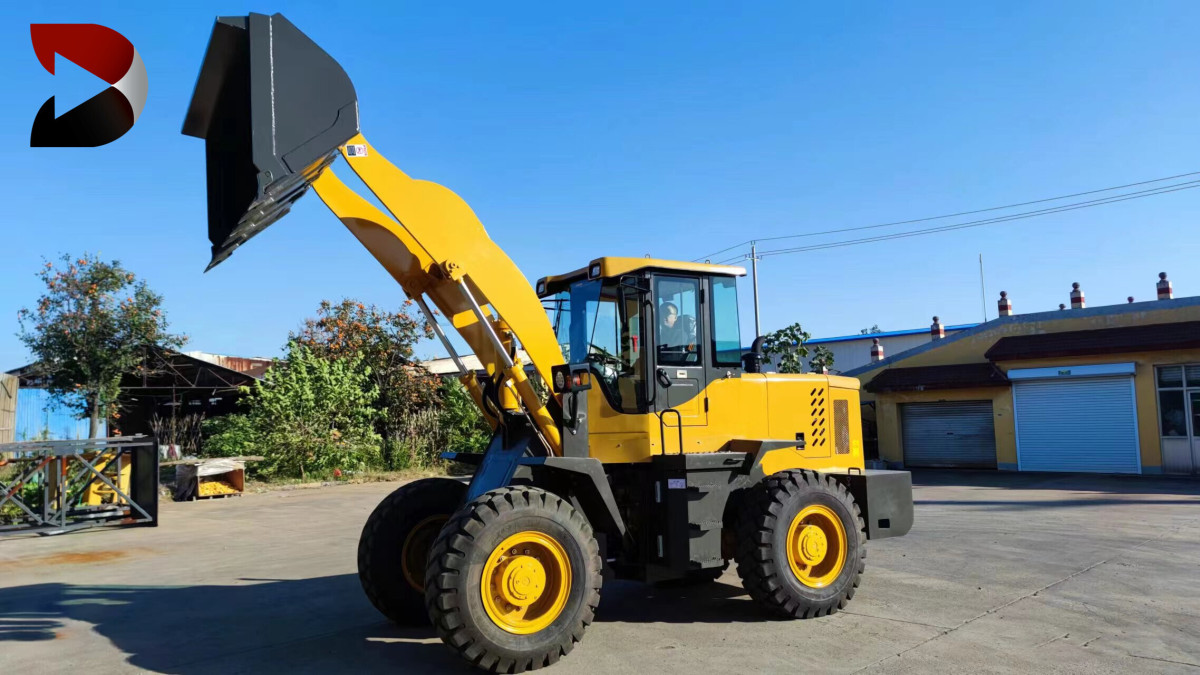

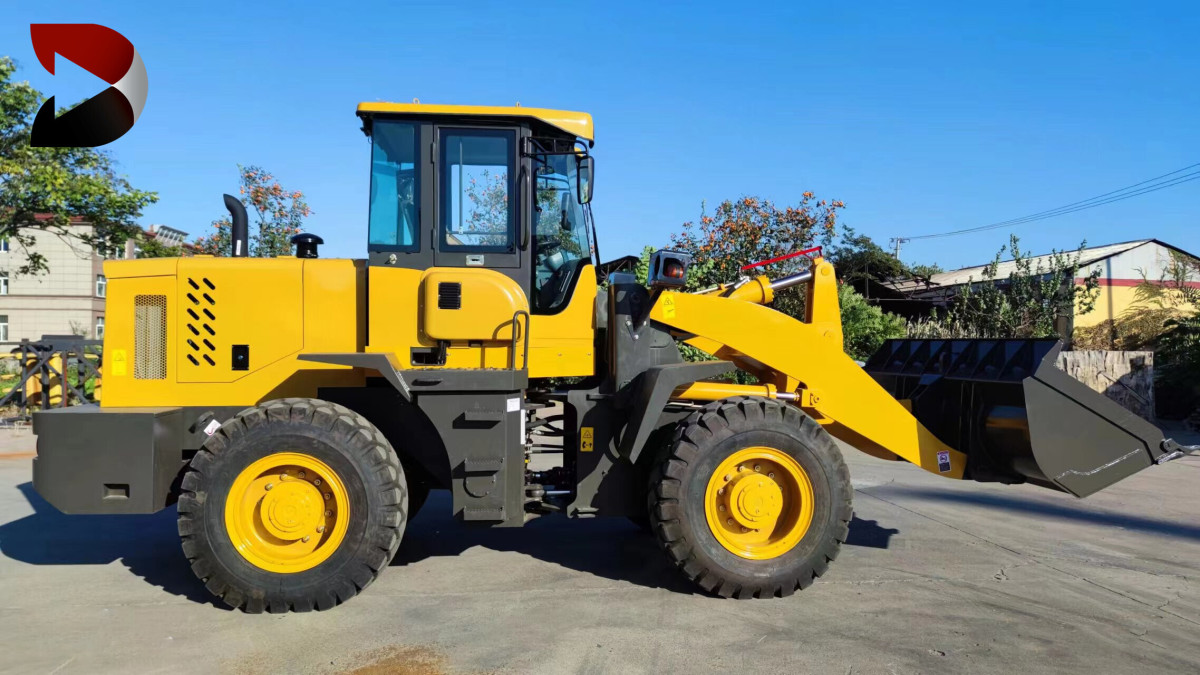

DW-30 Wheel Loader
The DW-3T loader has the advantages of high mobility, powerful loading capacity, simple operation, easy maintenance and low cost. They are widely used in construction, mining, logistics and ports, where they are used to load and transfer materials, carry out earthworks and form land.
+86 18206417190
+86 18206417190
admin@dwtoptruck.com
Contact Us

◉ Product Parameters

DW-3T wheel loader:

1.Operating system

The humanized design, the handle centralized gear is complete, the operation is simple, and the workers are easy to operate.

2.Off-road tire

The use of engineering rubber tires, suitable for swamp, mountain, grassland, snow, desert and other complex and harsh working conditions, itself has a strong adaptability.

3.Dynamic system

Equipped with high-power engine, the power output is more stable, the whole machine operation is more smooth, low fuel consumption, power Foot, large torque, easy maintenance.

4.Hydraulic system

The hydraulic self-unloading device is adopted to realize fast unloading, convenient and efficient, and save manpower.


TECHNICAL PARAMETERS

Vehicle size(mm)

7600*2400*3300

Rated load capacity3T
Bucket volume1.7m
Bucket width2.45m
Engine modelDongfanghong6105;weichai6105
Rated power103/92kw
AxleGb30
Engine typeTurbocharging
Digging force29.4kn
Dumping height3800mm
Dumping distance1083mm
Maximum torque570n.m/rpm
Maximum traction force98kn
Maximum gradeability30°
Overall length of the machine7760mm
Overall width of the machine2350mm
Overall height of the machine3400mm
Overall weight of the machine9600kg
Rated load capacity9600kg
Fuel tank95L
Minimum turning radius4200mm
Lifting height4630mm
Steering angle30°
Cooling methodWater-cooling
Operation methodMachine
Turning radius (outer side of the bucket)5064mm
Maximum speed40km/h
